What is Sediment Filter in Water Purifiers?

Sediment Filter

When impurities like mud, sand, rust particles or dust get mixed in the water, it not only makes the water dirty but also reduces the life of the other filters of the water purifier. Sediment Filter is used to prevent these problems.

Sediment Filter works to remove large particles and solid dirt from the water, so that the further filters can work properly and the water can be completely purified.

In this article, you will know in detail what is Sediment Filter, how it works and what is its role in keeping the water clean.

What is a Sediment Filter?

Sediment Filter is a filter that works to remove large particles visible in water. This includes soil, sand, hair, dust, and other large uneven particles. You can call it the “first line of defense” of water, as it prepares the water for the further purification process.

When water passes through the Sediment Filter, the large and undesirable particles present in it get trapped in the filter. This increases the lifespan of expensive and sensitive filters like RO, UF, or Activated Carbon and keeps their performance better.

In simple words, Sediment Filter handles the initial process of making water clean and safe and protects your entire water purifier system.

Important Points to Remember:

  • Sediment Filter stops large particles in water.
  • It prepares the water for the further purification process.
  • Helps in increasing the life and efficiency of RO, UF and Carbon Filters.

How does a Sediment Filter work?

Sediment Filter mainly works on the principle of Physical Filtration. Its small micro-pores stop the large particles present in the water, while the water continues to pass for further purification process.

Filtration Process Step-by-Step:

  1. Water Entry: Water first enters from the outer part of the filter.
  2. Trapping Particles: As soon as the water passes through the filter, solid particles like mud, sand, dust, rust present in it get trapped in the filter.
  3. Clean Water Outflow: Now the water is cleaned and sent to the next stage like RO, UF, or Activated Carbon Filter.

Surface Filtration vs Depth Filtration:

  • Surface Filtration: In this, the particles get trapped on the surface of the filter itself.
  • Depth Filtration: In this, water passes through the depth of the filter and the particles get trapped inside, which maintains the filter capacity for a longer time.

Thus, Sediment Filter ensures the safety and functionality of your purifier by preventing large and undesirable particles from the water.

Important Points to Remember:

  • Sediment Filter removes solid particles from water.
  • This filter increases the life of your RO/UF/Activated Carbon Filters.
  • Water is cleaned by both Surface and Depth filtration methods.

Types of Sediment Filters in Water Purifiers

Sediment Filter is of different types, which are chosen according to the quality and use of the water. Here are the main types:

1. Spun Cartridge Filters:

These are made of polypropylene fibers. Effectively trap sand, dust and large particles present in the water. These are best suited for small homes and light use.

2. Pleated Filters:

It has a folded design, which provides more surface area. This means it can filter more water quickly and efficiently. It is ideal for medium to heavy household use.

3. Bag Filters:

These are large-sized filter bags, used for places with Heavy Sediment. It can be used in large homes or small commercial setups. It is most effective in capturing large and heavy particles present in the water.

Each type of Sediment Filter removes solid particles present in the water according to its design and capacity and prepares the water for further purification process.

Important Points to Remember:

  • Spun Cartridge: For light use.
  • Pleated Filters: Fast and efficient filtration.
  • Bag Filters: For water with heavy sediment.
  • Choosing the right Sediment Filter is important for the life and performance of your water purifier.

Impurities Removed by Sediment Filter

The main function of Sediment Filter is to remove large and visible particles from water. It works at the initial purification stage so that the further filtration process can be done easily.

Below are the major impurities that it removes:

1. Sand and Mud:

If there is sand or mud mixed in your water, then Sediment Filter stops them immediately and makes the water clean.

2. Rust from Old Pipes:

Rust gets mixed in water from old iron pipes. This filter makes your water safe by stopping those particles.

3. Dust and Dirt:

Dust and dirt coming from the environment or water supply source also gets trapped in it and the water gets cleaned and reaches the next stage.

4. Other Visible Suspended Particles:

Small solid particles present in water, such as clay or other impurities, are also effectively removed by the Sediment Filter.

In this way, this filter prepares your water for further purification process and maintains the efficiency of the water purifier for a long time.

Key Takeaways:

  • Sediment Filter removes sand, mud, rust, dust and solid particles from water.
  • It cleans water at the initial stage so that further technologies like RO, UV or UF can be more effective.
  • A properly functioning Sediment Filter improves both the life of your purifier and the quality of water.

Benefits of Using a Sediment Filter

The Sediment Filter installed in your water purifier is very important not only for stopping the dirt at the initial level, but also for the safety and longevity of the entire system.

Let’s know its main advantages:

1. Protects the RO membrane and other filters:

The Sediment Filter stops large particles like dust, sand and rust. This prevents the RO membrane and other filters from choking and they work well for a long time.

2. Increases the life of the entire water purifier:

When the initial dirt is stopped by this, then there is no more load on the other filters. This directly affects the long life of the purifier.

3. Maintains the flow rate of water:

If the dirt accumulates too much, then the flow of water may decrease. Sediment Filter keeps the water flow intact and you get pure water all the time.

4. Economical and easy replacement:

This filter is easily replaced at a low cost. This means you can keep your water purifier safe for a long time without spending much.

Important Takeaways:

  • Sediment Filter protects the subsequent filters.
  • It increases both the life and performance of the purifier.
  • Keeps the water flow stable and is easy to replace.
  • Gives big benefits at a low cost, so it is important to replace it on time.

Limitations of Sediment Filters

Although Sediment Filter is very useful for initial cleaning of water, it also has some limitations that are important to know. It is designed to trap only large and visible particles, so it cannot meet all types of purification needs.

Let’s take a look at its Limitations:

1. Does not remove dissolved salts and chemicals:

Sediment Filter only traps solid particles like dust, soil and rust. Dissolved salts, chemicals or minerals present in water easily pass through it.

2. Not effective for bacteria and viruses:

This filter cannot trap microorganisms. That is, advanced filters like UV or RO are required to remove bacteria and viruses.

3. Unable to improve the taste and odor of water:

If your water has an odor or bad taste, Sediment Filter will not be able to make a difference. A carbon filter is required for this.

4. Regular cleaning or replacement required:

It accumulates dirt and grime over time. If not cleaned or replaced in time, it can slow down the water flow and reduce the performance of the purifier.

Don’t Overlook This:

  • Sediment Filter only provides initial purification.
  • Other filters are required to remove dissolved chemicals, bacteria and improve taste/odor.
  • It is very important to clean and replace it from time to time.

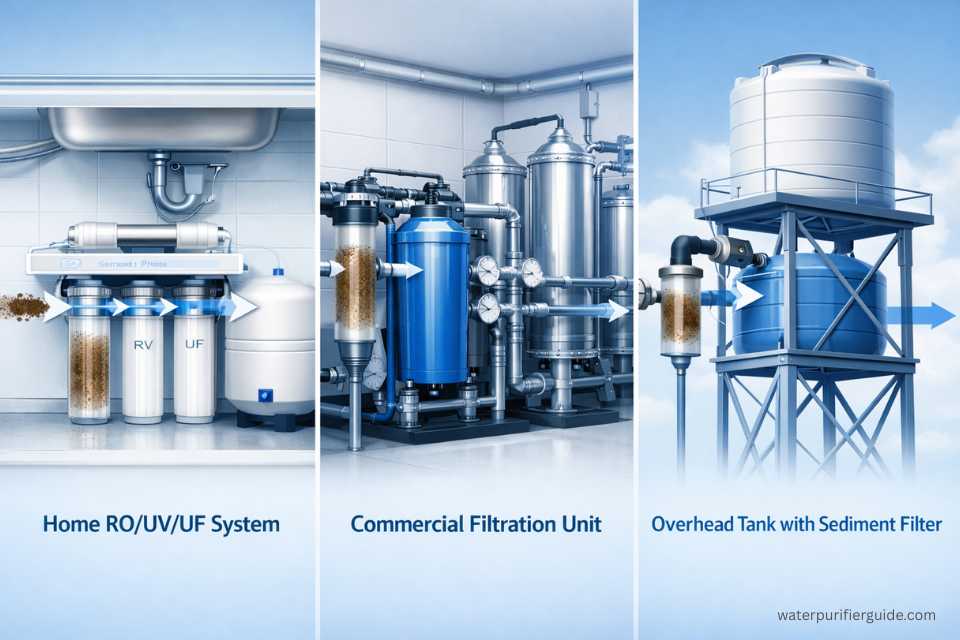

Where Are Sediment Filters Used?

The use of Sediment Filter is not limited to domestic water purifiers only, but it is installed in many places so that the water remains clean and safe. Its role is to free the water from dirt at the initial level.

1. Domestic RO, UV and UF Water Purifiers:

In most of the water purifiers used in homes, Sediment Filter is installed first. It protects the RO membrane and other filters by stopping solid particles like sand, dust and rust.

2. Commercial Water Filtration Systems:

Sediment Filter is also used in commercial places like hotels, restaurants and small industries. Here it is installed to clean the water on a large scale so that there is no pressure on the further filtration process.

3. Pre-Filters for Overhead Tank Water Supply:

In homes where water comes from overhead tanks, Sediment Filter is installed as a pre-filter. It prevents rust, mud and other dirt from accumulating in the pipes, keeping the water coming to the homes clean.

This Key Takeaways:

  • Sediment Filter is used in both domestic and commercial systems.
  • It is an essential part of RO, UV and UF water purifiers.
  • It is also very effective as a pre-filter for cleaning overhead tank water.

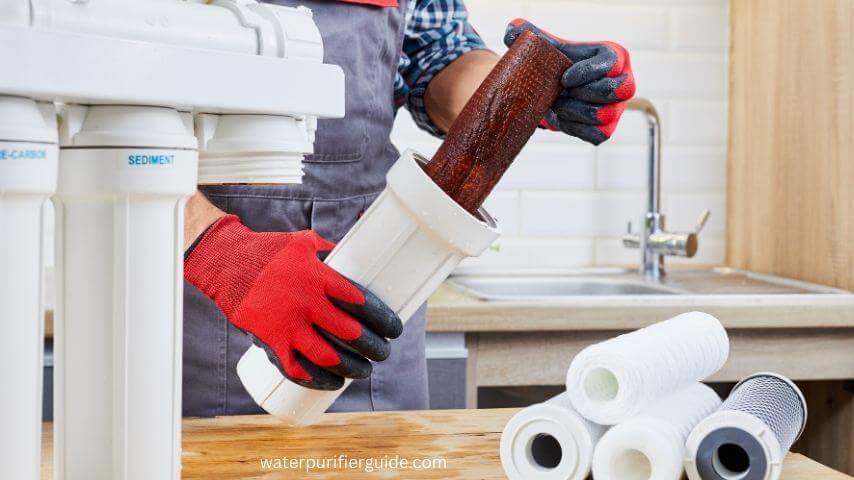

Maintenance and Replacement Tips

Regular care and timely replacement of Sediment Filter is very important for its proper functioning. If ignored, the performance of the water purifier may decrease and the RO membrane may get damaged quickly.

1. Recommended Cleaning or Replacement Frequency (6–8 Months):

Generally, the Sediment Filter should be cleaned or replaced every 6 to 8 months. This time may be less or more depending on the quality and usage of water.

2. Signs of Replacement Need:

  • Slow water flow.
  • Mud or dirt visible on the filter.
  • Decreased amount of water coming out of the purifier.

These signs indicate that it is time to replace your Sediment Filter.

3. How to Clean Sediment Filter at Home (If Washable):

If your Sediment Filter is washable, you can remove it and wash it thoroughly with running water. Light brushing can remove the accumulated dirt. But if the filter is damaged or very dirty, then installing a new one is the right option.

Remember This:

  • Replacing or cleaning the Sediment Filter from time to time increases the life of the purifier.
  • Slow flow is the biggest sign that the filter needs to be replaced.
  • Washable filters can be cleaned at home, but it is always better to replace the old filter.

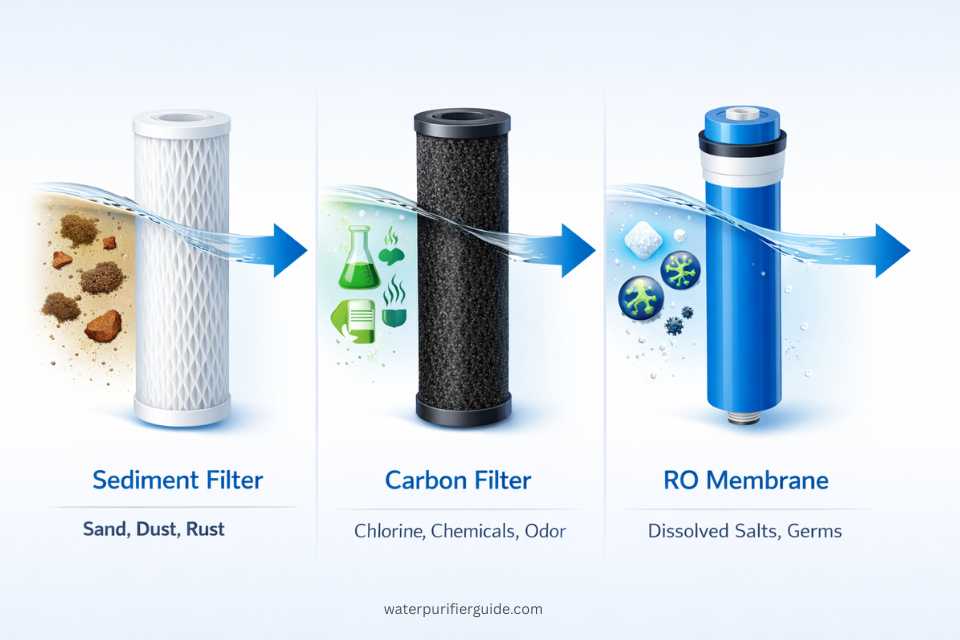

Sediment Filter vs Other Filters

Sediment Filter is the first stage of the water purification process, often called “first defense”. Its job is to remove visible impurities from the water, so that the subsequent filters and RO membrane are protected.

Let’s understand how it is different from other filters:

1. Difference from Activated Carbon Filters:

  • Sediment Filter: Removes sand, clay, dust, rust and other solid particles.
  • Activated Carbon Filter: Removes gas and taste related impurities such as chlorine, chemicals and odor.

2. Difference from RO Membrane:

  • Sediment Filter: Only blocks large and visible particles.
  • RO Membrane: Removes salt, metals and bacteria dissolved in water.

Important Takeaways:

  • Sediment Filter is for solid particles, while Carbon Filter is for improving taste and odor.
  • RO membrane removes dissolved contaminants at the most advanced level.
  • Sediment Filter is always the first and foremost defense.

Conclusion

Sediment Filter is the most basic and essential part of any water purifier. It protects the front filter and RO membrane by removing sand, dust, rust and other solid particles from the water. If it does not work properly, expensive filters can get damaged quickly.

So, it is very important to replace or clean the Sediment Filter on time. Usually, replacing it every 6–8 months keeps your water purifier running for a long time and also maintains the purity of the water.

FAQs Section:

Q1. What is Sediment Filter and what is its function?

Sediment Filter removes particles like dust, soil, sand and rust from water. This is the first stage which protects the rest of the filters from getting damaged.

Q2. After how much time should Sediment Filter be changed?

It is generally recommended to change Sediment Filter in 8–12 months. If the flow of water slows down or dirt starts appearing, then it should be changed immediately.

Q3. Does Sediment Filter remove bacteria and chemicals?

No, Sediment Filter removes only large particles. RO, UV or Activated Carbon Filters are required to remove bacteria, viruses or chemicals.

Q4. What is the difference between Sediment Filter and Carbon Filter?

Sediment Filter removes particles like dust and dirt, while Activated Carbon Filter helps in removing chlorine, pesticides, and bad odor from water.

Q5. Can Sediment Filter be cleaned at home?

Yes, if your Sediment Filter is washable then it can be reused by washing it with water. But non-washable filters need to be replaced.
